- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 14-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF
- 5.76m-Dot OLED Electronic Viewfinder
- 3.0" 1.62m-Dot Swivel Touchscreen LCD
- 5-Axis In-Body Image Stabilization
- High-Res Shot, Live ND & Composite Modes
- IP53 Weather-Sealed & Freezeproof Design
- Dual UHS-II SD Card Slots

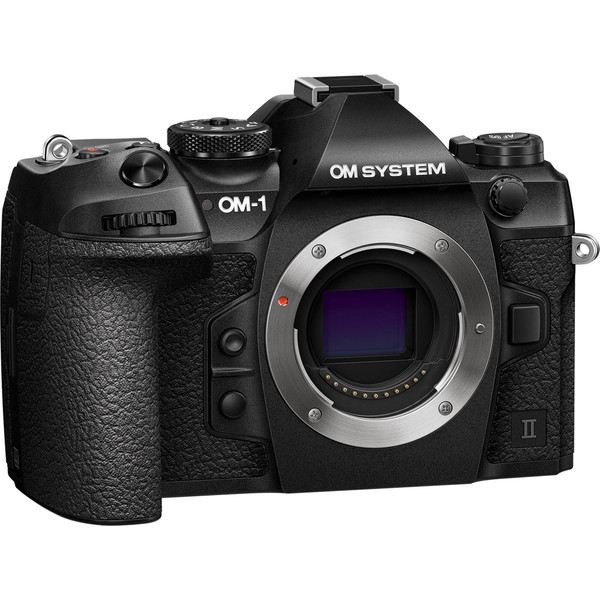

The first flagship to carry the OM SYSTEM name, the OM-1 Mark II is a revamped second iteration of the proven Micro Four Thirds mirrorless camera. Its 20MP stacked BSI Live MOS sensor and TruePic X processor deliver high-quality captures, speedy autofocus, and excellent low-light performance with a native ISO range of 200 to 102,400. Primed to give you a closer view of your subject due to the crop factor of the Micro Four Thirds system, the OM-1 Mark II excels in wildlife and nature photography. When you're shooting handheld, the sharpness of your images is greatly improved by the 5-axis in-body image stabilization. Altogether, the OM-1 Mark II provides users mobility, precision, and a reliable workhorse camera for image and video capturing.
Among the noteworthy upgrades of the OM-1 Mark II are enhanced AI subject detection for humans, live graduated neutral density filters, updated menu configuration, 14-bit raw output, and rubberized dials.
Cross Quad Pixel AF
1053 individual focus points are made available by the OM-1 Mark II's comprehensive Cross Quad Pixel autofocus system, allowing the camera to catch focus nearly anywhere on the sensor. With this design, the camera automatically detects subjects such as birds, humans, animals, cars, airplanes, and trains in order to keep them in focus and track their movements. This Cross Quad Pixel AF algorithm paired with the TruePic X processor promises a high-speed, reliable focusing performance.
Notable Mark II Upgrades
- 20% increase in image stabilization and 8.5 EV stops of compensation
- Rubberized dials for a more tactile feel
- Menu button can be programmed to Delete, making it so you don't have to remove your left hand from your lens
- Triple the amount of tones in your images with 14-bit raw output
- Improved blackout-free sequential shooting
- Vertical video support
- Live GND8 and ND128 Filtering
- Improved Human AI subject detection AF
Specifications:
Imaging
| Lens Mount |
Micro Four Thirds
|
| Sensor Resolution |
Actual: 22.9 Megapixel
Effective: 20.4 Megapixel
|
| Image Sensor |
17.4 x 13 mm (4/3"-Type) MOS
|
| Sensor Crop (35mm Equivalent) |
Crop Factor: 2x
|
| Image Stabilization |
Sensor-Shift, 5-Axis
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
Mechanical Shutter
1/8000 to 60 Seconds
Electronic Front Curtain Shutter
1/320 to 60 Seconds
Electronic Shutter
1/32000 to 60 Seconds
|
| Bulb/Time Mode |
Bulb Mode, Time Mode
|
| ISO Sensitivity Range |
Photo/Video
200 to 102,400 in Manual, Auto Mode
|
| Metering Method |
Center-Weighted Average, Highlight, Multi-Zone, Spot
|
| Precise Scan Rate Control |
No
|
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-5 to +5 EV (1/3, 1/2, 1 EV Steps)
|
| Metering Range |
-2 to 20 EV
|
| White Balance |
Presets: AWB, Custom
|
| Continuous Shooting |
Mechanical Shutter
Up to 10 fps
|
| Interval Recording |
Yes
|
| Self-Timer |
No
|
Still Image Capture
| Image Sizes |
4:3 JPEG / Raw
20 MP (5184 x 3888)
|
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9
|
| Image File Format |
JPEG, Raw
|
| Bit Depth |
12-Bit
|
Video Capture
| Internal Recording Modes |
H.264/MOV/MPEG-4 AVC
4096 x 2160 at 24.00/25/30.00/50/60.00 fps
3840 x 2160 at 24.00/25/30.00/50/60.00 fps
1920 x 1080 at 24.00/25/30.00/50/60.00 fps
|
| External Recording Modes |
No
|
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
FLAT, HDR-HLG, OM-Log
|
| IP Streaming |
No
|
| Built-In Microphone Type |
Stereo
|
Interface
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II)
|
| Video I/O |
1x Micro-HDMI (Unspecified Signal) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Input
|
| Power I/O |
1x USB-C Input/Output
|
| Other I/O |
1x Built-In Cable with Micro-USB
|
| Wireless |
2.4 / 5 GHz Wi-Fi
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Via Connected Smartphone
|
Monitor
| Display Size |
3"
|
| Resolution |
1,620,000 Dot
|
| Display Type |
Articulating Touchscreen LCD
|
Viewfinder
| Type |
Built-In Electronic (OLED)
|
| Resolution |
5,760,000 Dot
|
| Eye Point |
21 mm
|
| Coverage |
100%
|
| Magnification |
Approx. 1.48x
|
| Diopter Adjustment |
-4 to +2
|
Focus
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Photo, Video
Phase Detection: 1053
|
Flash
| Built-In Flash/Light |
No
|
| Flash Modes |
Fill In, Manual, Off, Red-Eye Reduction, Slow Sync
|
| Maximum Sync Speed |
1/250 Second
|
| Flash Compensation |
-3 to +3 EV (1/3, 1/2, 1 EV Steps)
|
| Dedicated Flash System |
TTL
|
| External Flash Connection |
PC Terminal
|
Environmental
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
30 to 90%
|
| Storage Humidity |
10 to 90%
|
General
| Battery Type |
1x BLX-1 Rechargeable Lithium-Ion
|
| Shoe Mount |
1x Hot Shoe
|
| Tripod Mounting Thread |
1x 1/4"-20 Female
|
| Dimensions (W x H x D) |
5.3 x 3.6 x 2.9" / 134.8 x 91.6 x 72.7 mm
|
| Weight |
1.1 lb / 511 g (Body Only)
|
